Standard equipment
für verschiedenste Einsatzgebiete
-
Torsion-resistant longitudinal beam chassis for high directional stability
Closed, completely welded and hot-dip galvanized steel frame profile for optimum stability
-
Reinforced automatic support wheel mounted on a separate cross member with a load capacity of 500 kg for safe parking of the trailer
Manoeuvring handle for easy handling
-

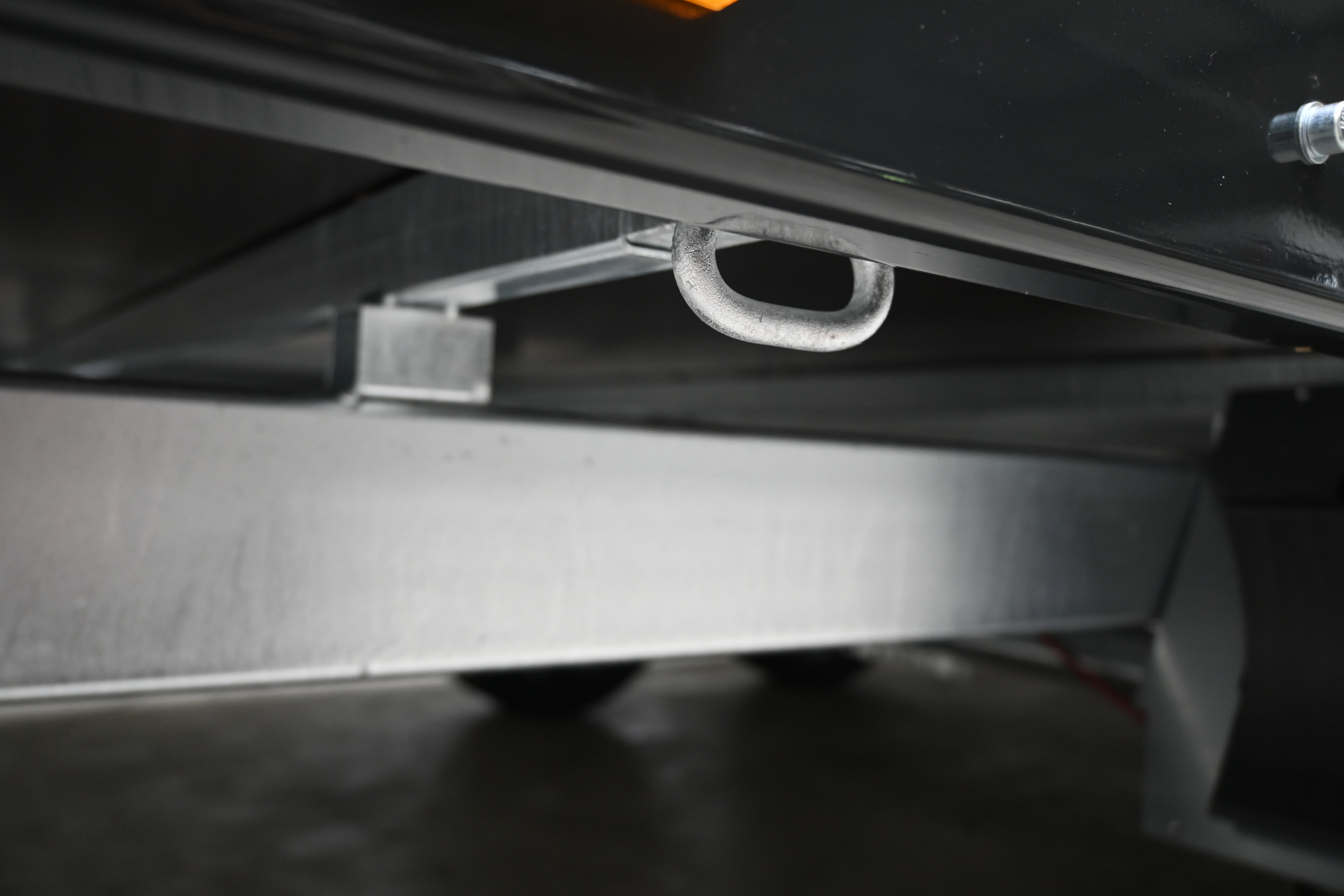

Rail bracket mounted under the loading area

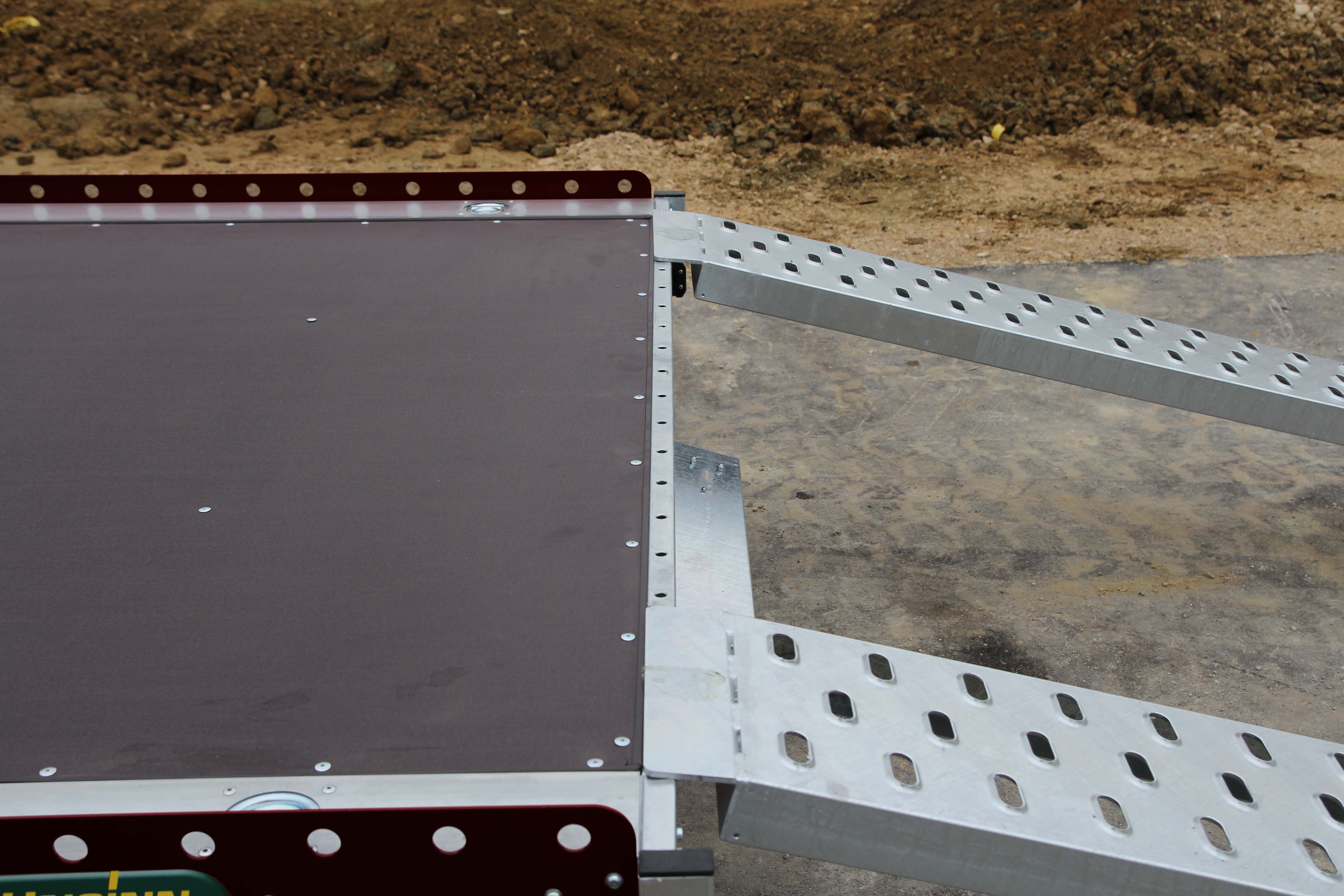

Two steel ramp rails with a max. load capacity of 2900 kg / pair, length: approx. 2625 mm, width: approx. 300 mm
Winch block and hand winch with 900 kg pulling force supplied loose for safe loading
One pair of sturdy drop supports mounted at the rear
Drive-on rail anti-slip device at the rear of the vehicle
-
Powder-coated side skirts in black-grey (RAL 7021) for securing the load

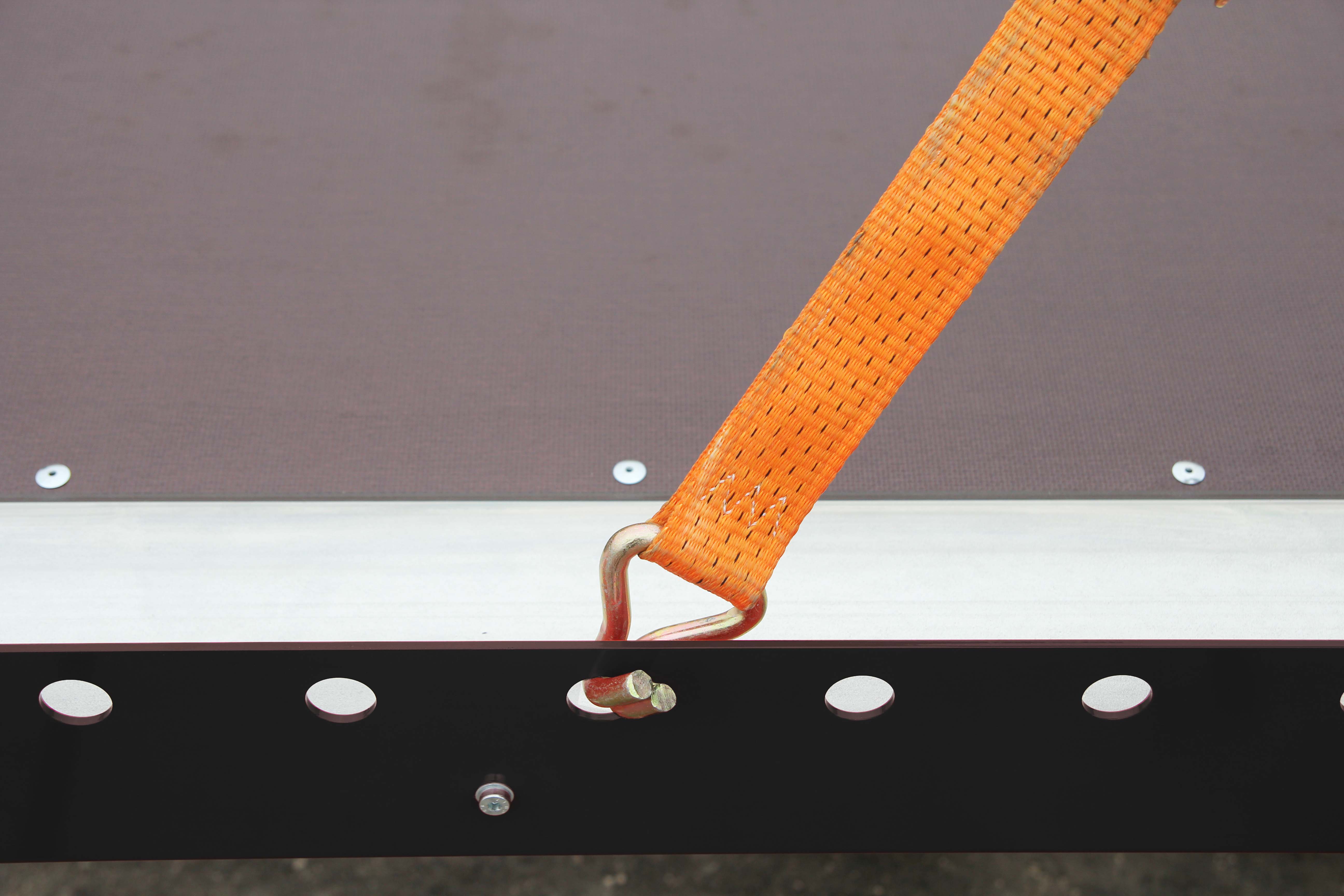

Lashing points in the side skirts can each be loaded with up to 400 daN (kg)
Lashing recesses can be loaded with up to 600 daN (kg) each and DEKRA certified
-
Multi-bonded, anti-slip and waterproof screen printing plate (18 mm)
Continuous (= without joint), embedded in the floor frame profile for more stability and durability
-
Lighting with 13-pin plug and protected rear lights for long and safe operation ft he electrical components
Cable routing in the chassis longitudinal members -> protection against external influences, therefore particularly durable
