Standard equipment

Frame

Torsion-resistant longitudinal beam chassis (longitudinal beam continuous from the overrun device to the light carrier) for high directional stability

Closed, completely welded and hot-dip galvanized steel frame profile for optimum stability

Integrated ramp shaft with tensioning device and folding licence plate holder for safe and elegant stowage of the ramp rails under the loading area

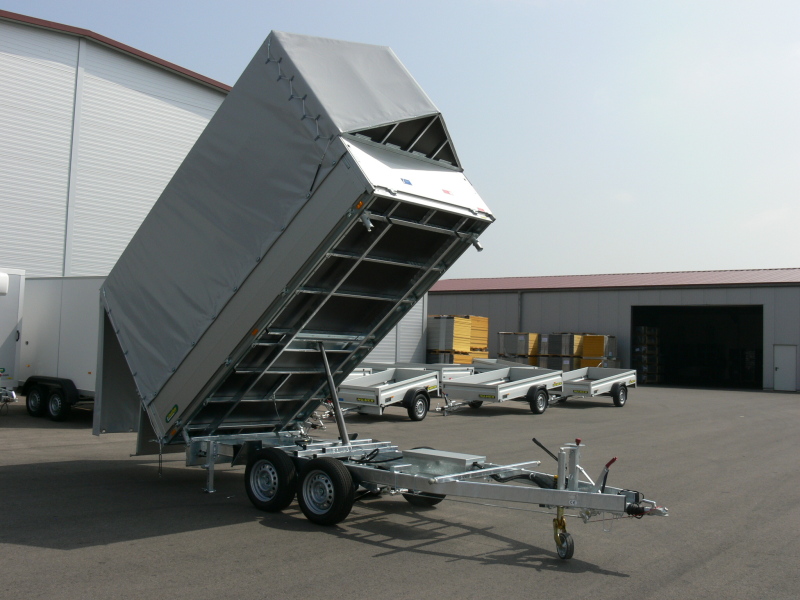

With maintenance support to secure the tilted bridge during maintenance work

Support wheel

Reinforced automatic support wheel mounted on a separate cross member with a load capacity of 500 kg for safe parking of the trailer

Manoeuvring handle with practical strap retractor for easy handling

Solid steel floor across the entire width of the vehicle

Bridge with maximum number of cross beams for particularly high point loads

Load securing

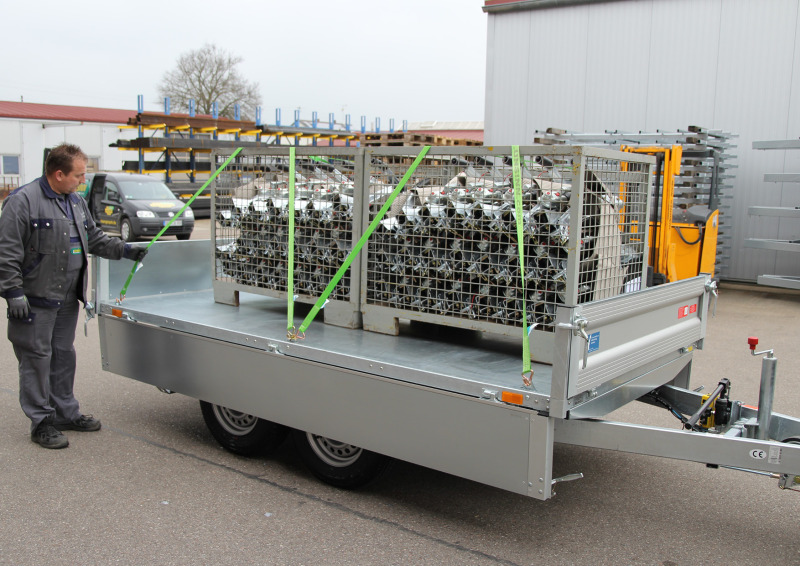

Patented Spinlock load securing system for more flexibility and efficiency in load securing, DEKRA certified

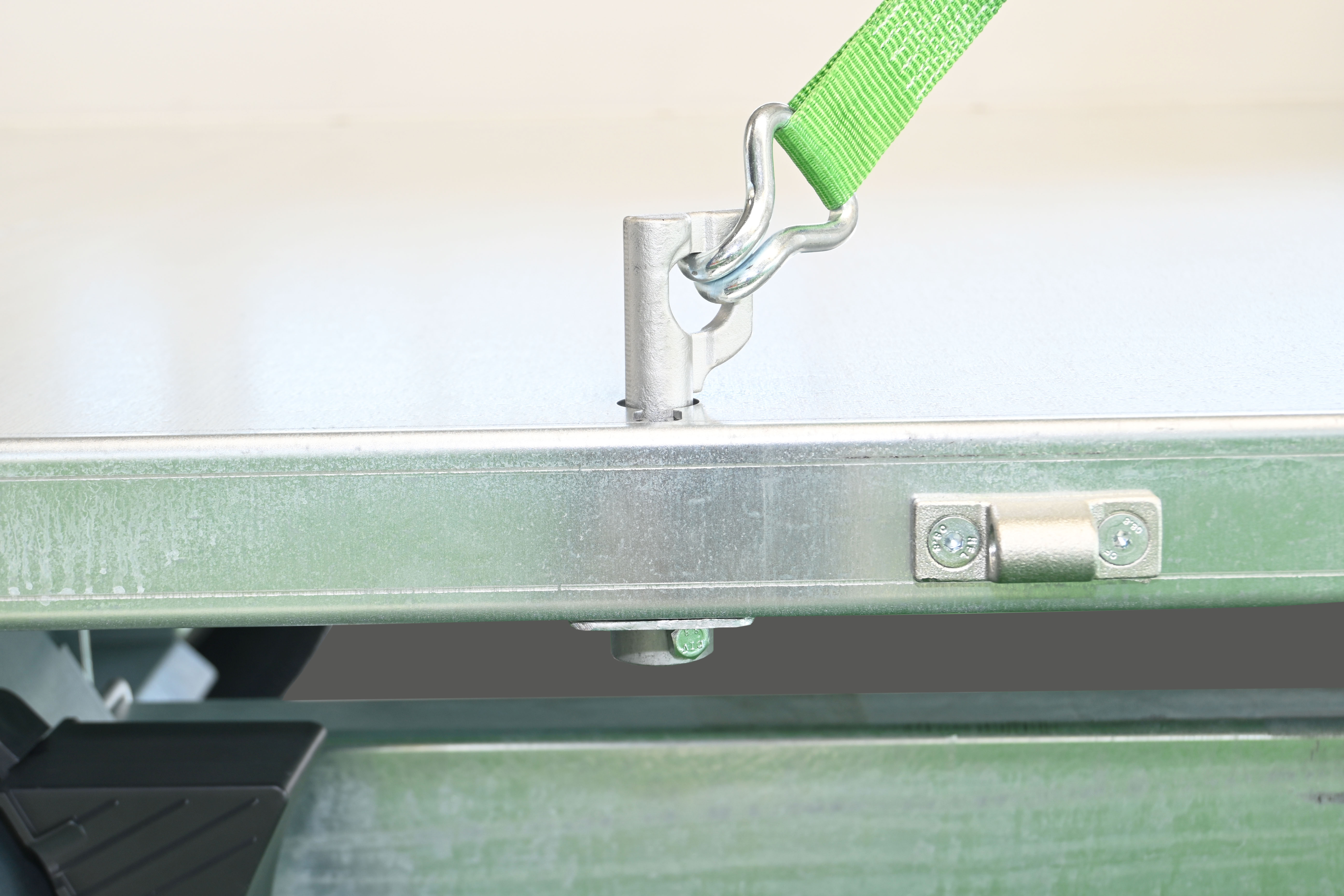

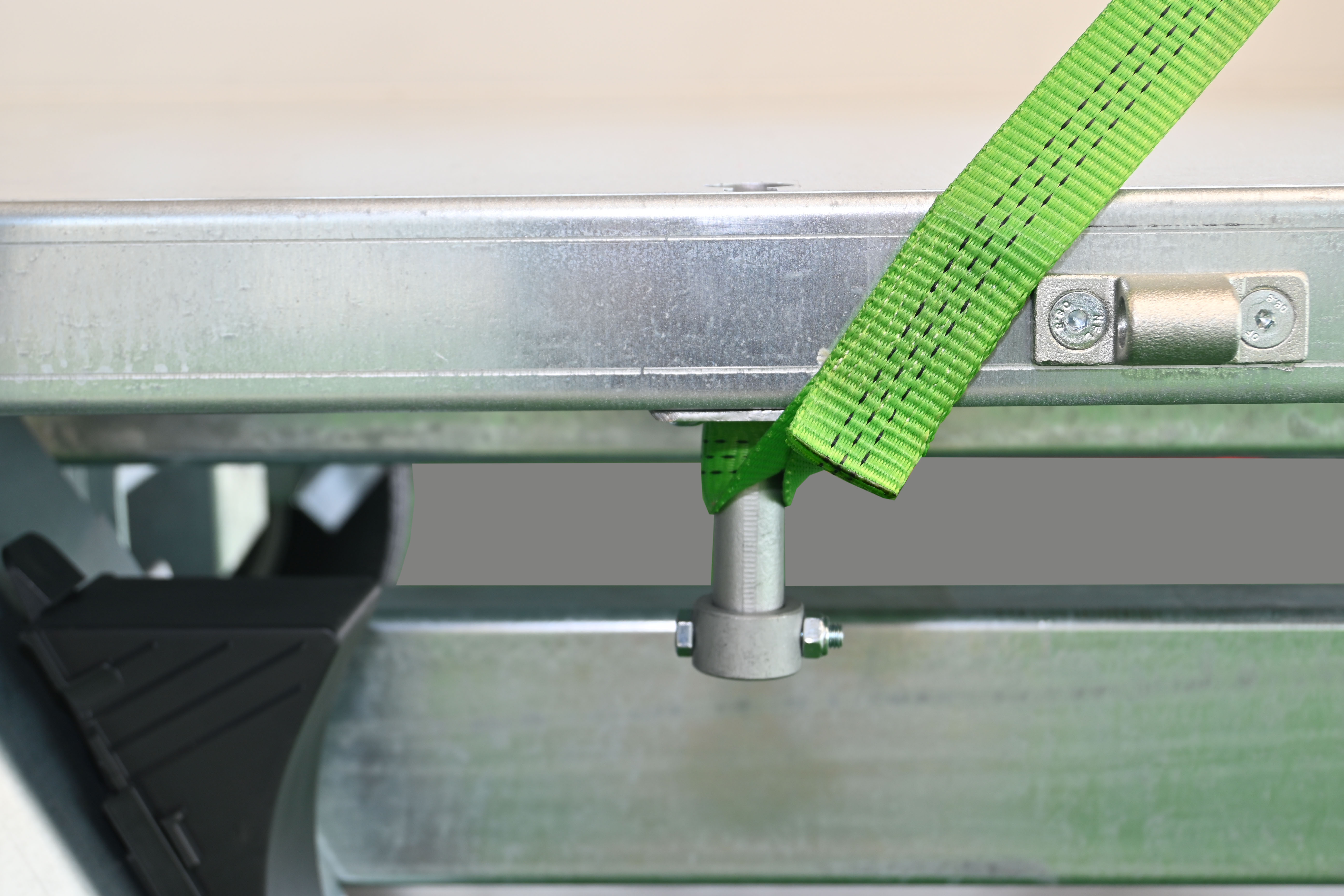

Lashing pins on and under the loading area can be loaded with up to 1500 daN (kg) each and can be rotated through 360°.

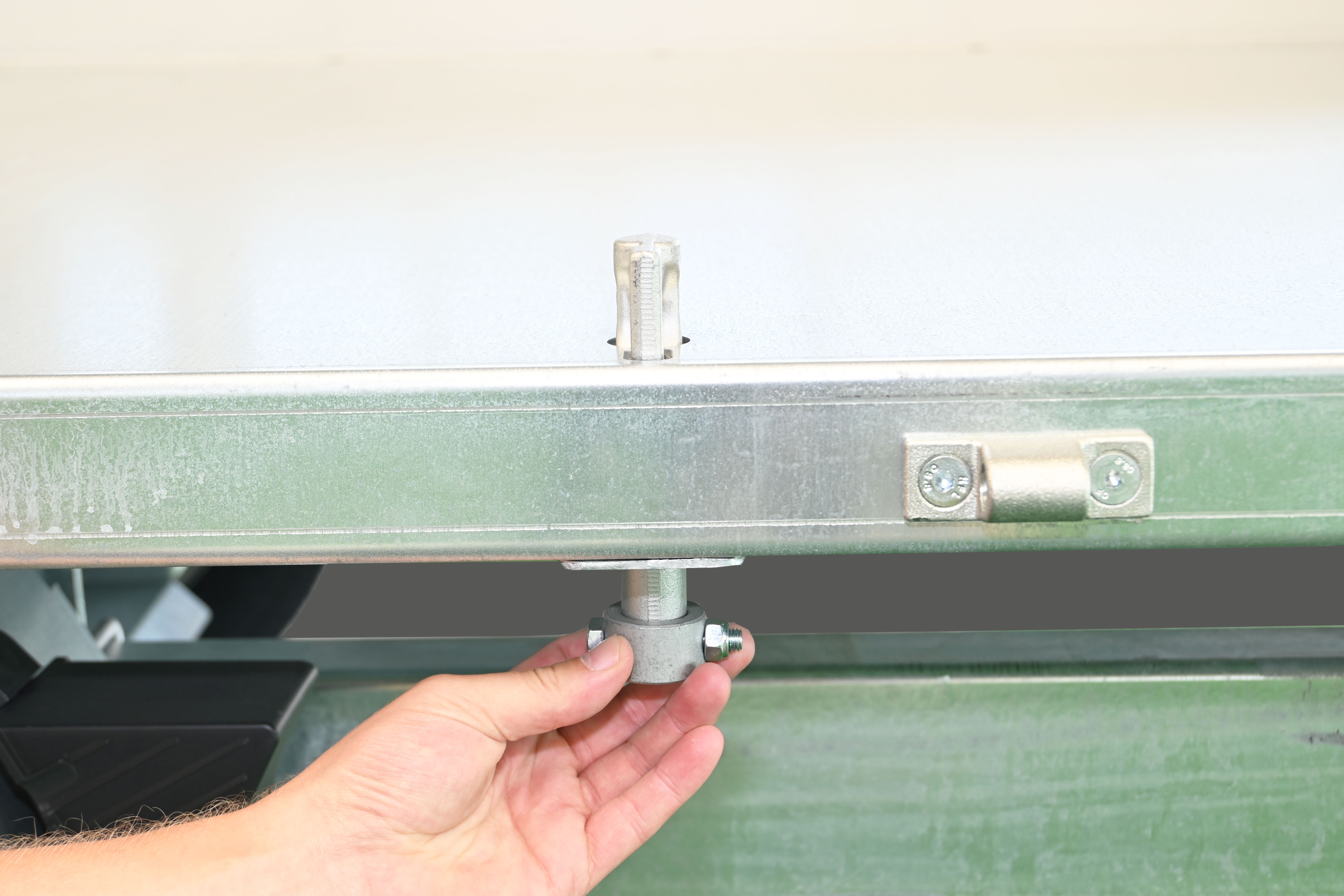

Pot magnet with key ring for pulling out the lashing pins when the drop side is open

Anodised, completely foldable and removable drop sides made of aluminium

Galvanised angle lever locks with spring safety device

Rear drop side with steel planking, can be folded down incl. anti-slip device for drive-on rails

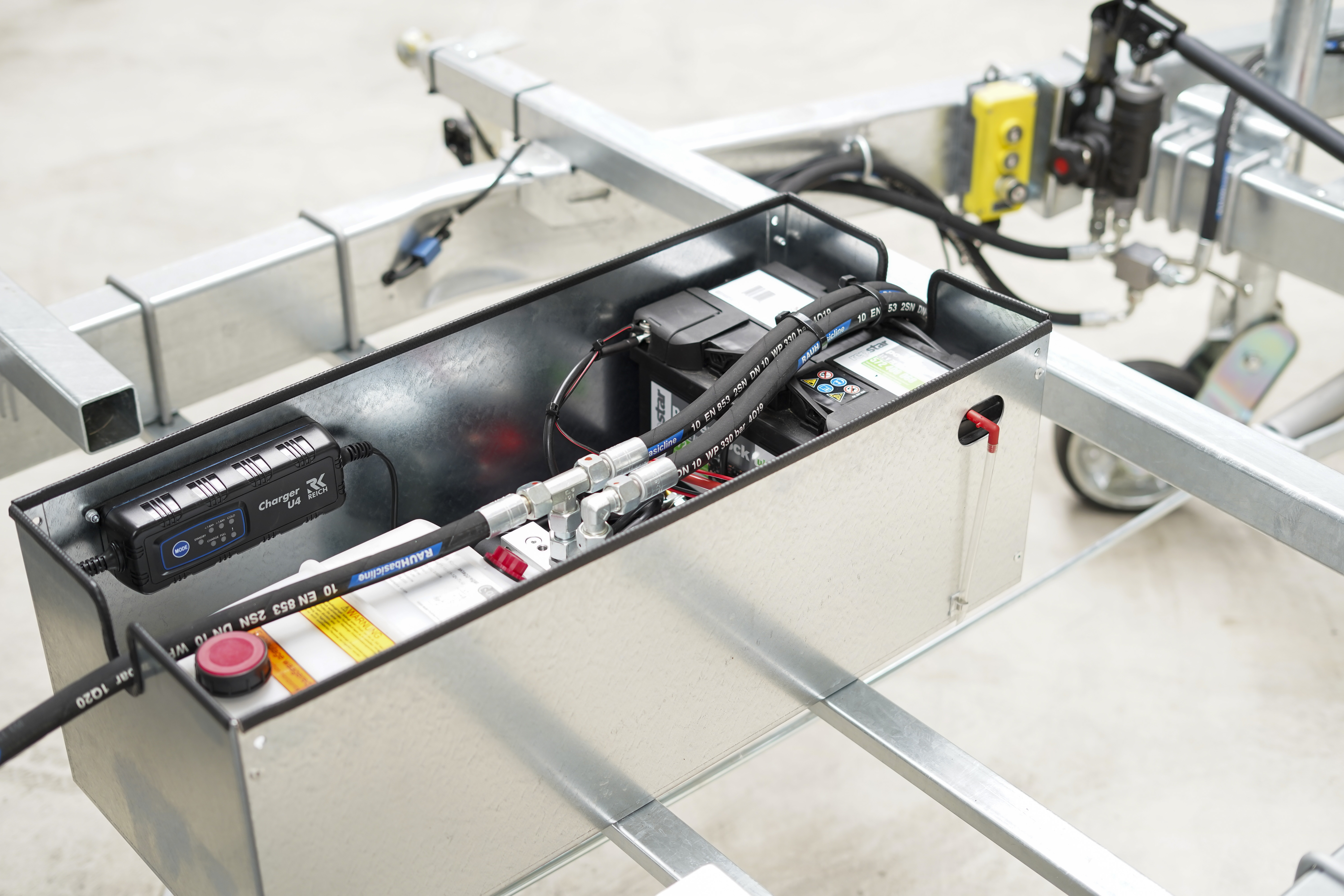

Protected mounted e-hydraulics with battery and powerful charger for long service life

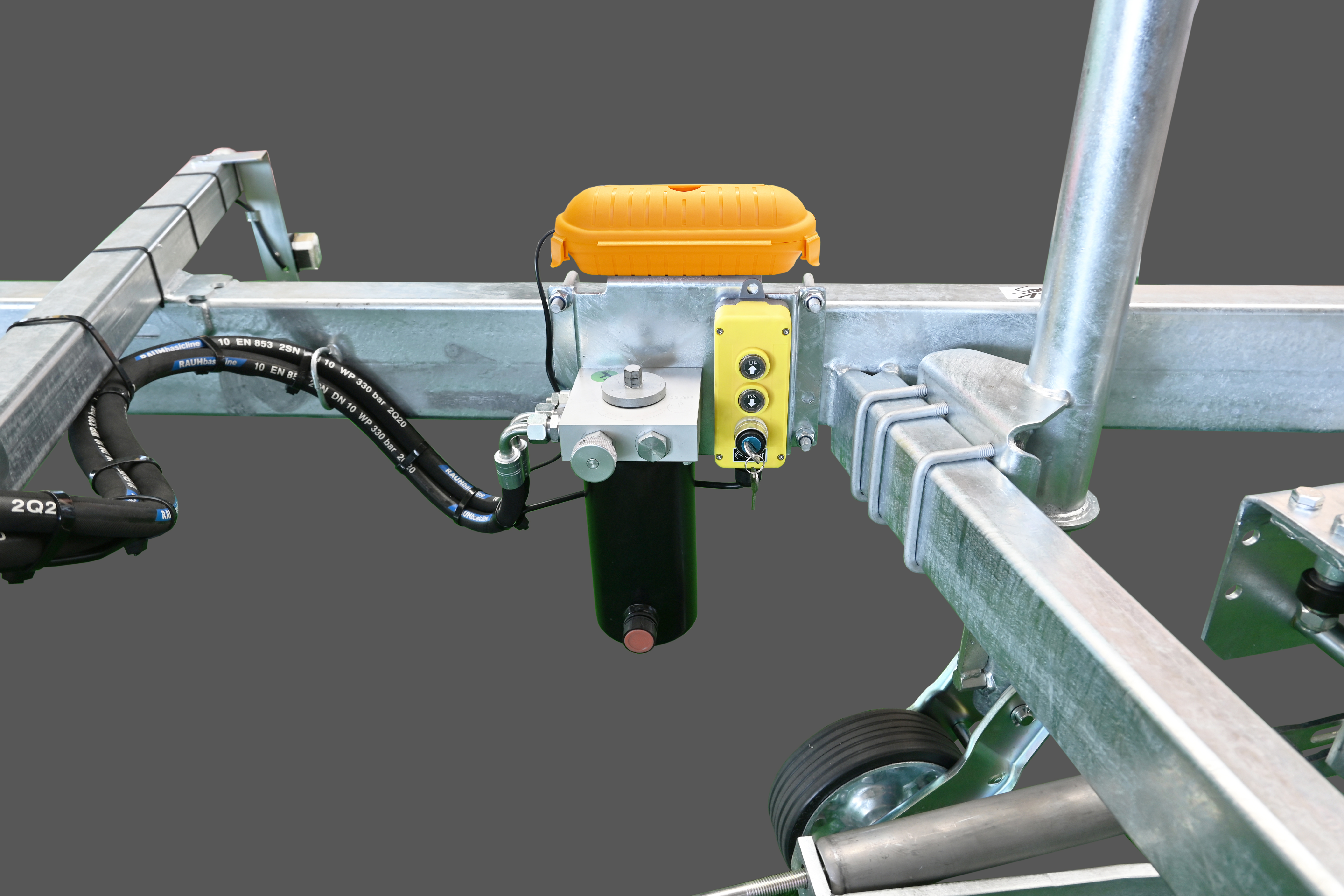

Pumpless emergency pump incl. matching socket spanner insert for convenient and easy tipping with the cordless spanner when the battery is low
